Vehicle Specification & Fitment

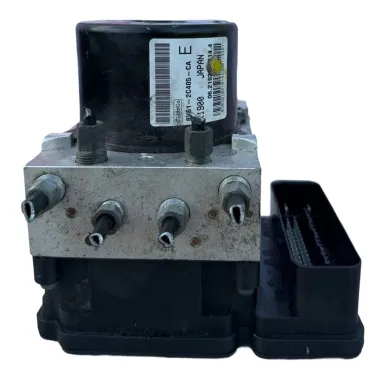

| OEM Part Number | 8V61-2C405-CA |
|---|---|

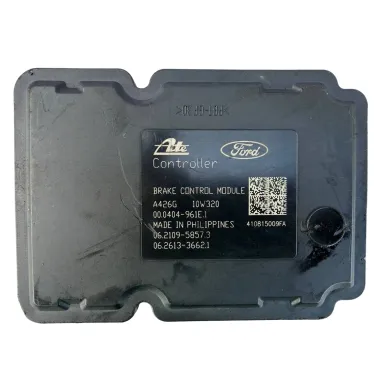

| ABS ECU Controller P/N | 06.2109-5857.3 |
| Manufacturer Reference | 06.2613-3662.1 |
| Software Version (SW) | 00.0404-961E.1 |
| System Designation | A426G |
| Manufacturer Reference | 410815009FA |
| Manufacturer Reference | 06.2102-1614.4 |
| Manufacturer Reference | 10W320 |
| System Designation | K1900 |
| System Designation | A426G |
| System Designation | E |
| Make | Mazda |
| Model | 3 |
| Series | Bl |
| Year Range | 2009 - 2013 |
| Compatible Years | 2009, 2010, 2011, 2012, 2013 |
| Weight | 3 Kgs |
| Condition | Used (Tested & Verified) |

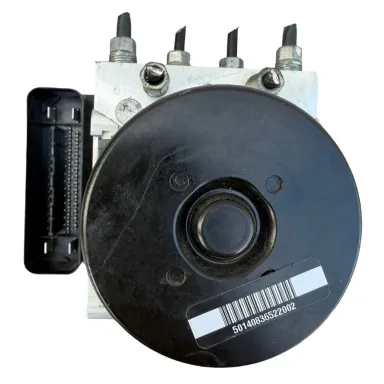

Genuine Mazda 3 BL ABS Pump & Module - Part No. 8V61-2C405-CA (2009 - 2013)
Donor VIN: JM0BL10F100194587100% Fitment Guarantee for Mazda 3
Unsure if this fits your vehicle? Our experts will manually verify the compatibility of SKU: LHJJUFAD for your specific Mazda model before dispatch.
Free Express Shipping & Free In-Store Pickup
Free Express Shipping Australia-Wide (1-2 business days) or free in-store pickup from our Yennora, NSW warehouse.
View Warehouse LocationCertified OEM Replacement for Mazda 3 BL Braking & Stability Control
Restore the critical safety features of your Mazda 3 BL (2009–2013) with this Genuine OEM ABS Module (Part No: 8V61-2C405-CA). This unit is the primary fix for vehicles experiencing the common ATE pump motor failure. Each assembly is professionally dismantled and bench-tested in our Yennora facility to ensure internal pressure sensors and motor brushes are in peak condition. Don't risk your safety with unverified parts; choose a tested, genuine solution with guaranteed Australian fitment.
Fault Symptoms (Diagnostic Guide)
-
Fault Code C0020 ABS Pump Motor Control Circuit Failure—the most frequent electrical failure point for the BL generation.
-
The "Trifecta" Lights ABS, Traction Control, and Brake lights all illuminated simultaneously on your instrument cluster.
-
No Brake Pressure Noticeably reduced braking force at one or more wheels, often caused by modulator valve blockage.
-
Limp Mode Stability control failure causing the ECU to reduce engine performance as a safety precaution.
Fitment & Technical FAQ for Mazda 3 (2009 - 2013) Braking System Part #8V61-2C405-CA
Yes. This "Trifecta" of lights is a textbook symptom of Fault Code C0020 (ABS Pump Motor Control Circuit). It occurs when the internal motor of the 8V61 or BFD2 unit fails. Our units are bench-tested specifically to ensure the motor relay and brushes are 100% functional, clearing the dash lights and restoring full safety systems.
These are chronological revisions of the same ATE MK61 unit. Generally, they are interchangeable as long as the base part number (8V61-2C405) matches. The "AG" is the latest revision with improved internal sealing, but all versions we sell are verified to be free of the common motor-seizing issues found in original factory units.
For the BL series (2009–2013), these units are generally plug-and-play for the anti-lock braking function. However, you will need a scan tool to perform a "Lateral Acceleration" and "Pressure Sensor" calibration (zeroing the sensors) to ensure the Dynamic Stability Control (DSC) functions correctly on Australian roads.
