Vehicle Specification & Fitment
| OEM Part Number | 1K0614517AT |
|---|---|
| Manufacturer Reference | 10.0212-0401.4 |
| ABS ECU Controller P/N | 1K0 907 379 BE |
| System Designation | ESP |
| ABS ECU Controller P/N | 10.0961-0343.3 |
| Manufacturer Reference | 10.0212-0481.4 |
| Manufacturer Reference | 10.0619-3654.1 |
| Manufacturer Reference | 28.5610-5424.3 |
| Manufacturer Reference | 61131201907 |
| Hardware Version (HW) | H31 |
| Software Version (SW) | S0108 |
| System Designation | TT1 |
| System Designation | CTA |
| System Designation | G2+ |
| Make | Volkswagen |
| Model | Golf |
| Series | 5K1 |
| Year Range | 2009 - 2013 |
| Compatible Years | 2009, 2010, 2011, 2012, 2013 |
| Weight | 3 Kgs |
| Condition | Used (Tested & Verified) |

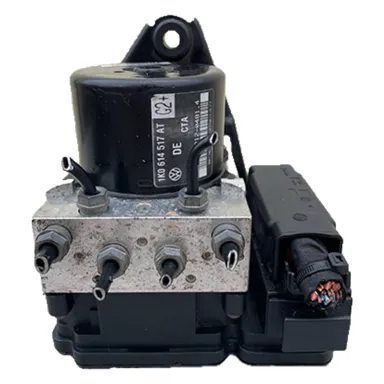

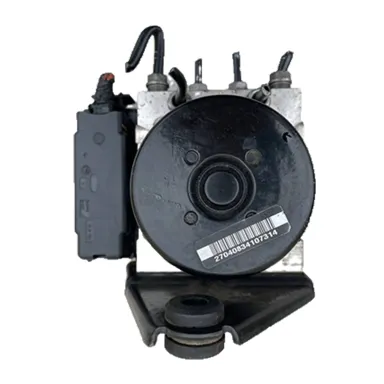

Volkswagen Golf 5K1 ABS Module - 1K0614517AT / 1K0907379BE (2009-2013)
100% Fitment Guarantee for Volkswagen Golf
Unsure if this fits your vehicle? Our experts will manually verify the compatibility of SKU: ZHRWLZ for your specific Volkswagen model before dispatch.
Free Express Shipping & Free In-Store Pickup
Free Express Shipping Australia-Wide (1-2 business days) or free in-store pickup from our Yennora, NSW warehouse.
View Warehouse LocationVehicle Compatibility List
Verified FitmentPremium Bosch Braking Control Unit for Golf VI Series

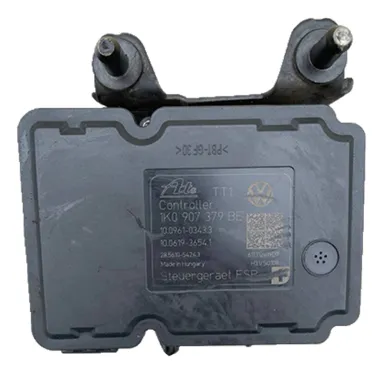

Replace a diagnosed faulty ABS/ESP assembly with this Genuine Volkswagen / ATE ABS Pump & ESP Control Module (1K0 614 517 AT / 1K0 907 379 BE) . The electronic control module is an ATE ESP MK60EC1 unit carrying controller reference 10.0961-0343.3. Each unit is inspected and function-tested before sale.
ABS and ESP faults may also be caused by power supply, wiring, sensors, connectors or other brake-control components. Correct diagnostic testing is recommended before replacing the assembly.
Possible ABS / ESP System Fault Symptoms
- 01130 – ABS Operation: Implausible Signal 01130 indicates implausible ABS operation. Fuses, wiring, electrical interference and the brake-electronics control module should be checked before replacement.
- 01276 – ABS Hydraulic Pump (V64) 01276 relates to the ABS hydraulic pump circuit. Fuses, grounds, wiring, connectors, the pump and control module should be checked before replacement.
- ABS / ESP Warning Lights Persistent ABS or ESP warning lights indicate a stored brake-control system fault. Diagnostic scanning should be used to determine the underlying cause.
Fitment & Technical FAQ for Volkswagen Golf (2009 - 2013) Braking System Part #1K0614517AT
Fault code 01435 relates to the G201 brake-pressure-sensor system, but the required repair depends on the fault subcode. Possible causes include incorrect basic setting, brake-pedal-switch faults, the pressure sensor, hydraulic unit or ABS control module. Complete the applicable diagnostics and G201 basic setting before replacing the assembly.
01130 – ABS Operation: Implausible Signal can be caused by electrical supply/wiring issues, interference or a faulty brake-electronics control module. If external causes have been checked and the module is confirmed faulty, repair or replacement may be required.
Yes. The replacement MK60EC1 brake-control module must be correctly coded for the vehicle's equipment configuration. If the original module still communicates, save its original long coding before removal. After coding, applicable ABS/ESP basic settings and sensor calibrations must be completed using suitable Volkswagen-compatible diagnostic equipment such as VCDS or ODIS. The hydraulic brake system must also be correctly bled after hydraulic-unit replacement.
