Vehicle Specification & Fitment
| OEM Part Number | 8V61-2C405-AG |
|---|---|
| Manufacturer Reference | 10.0212-0458.4 |
| ABS ECU Controller P/N | 10.0961-0115.3 |
| Manufacturer Reference | 10.0619-3261.1 |
| Manufacturer Reference | 6097100081A |
| System Designation | ABS |
| Software Version (SW) | 00.0404-961D.0 |
| Manufacturer Reference | 09W285 |
| System Designation | K1900 |
| System Designation | A426G |
| System Designation | E |
| Secondary Part Number | BBY7-43-7AZD |
| Make | Mazda |
| Model | 3 |
| Series | Bl |
| Year Range | 2009 - 2013 |
| Compatible Years | 2009, 2010, 2011, 2012, 2013 |
| Weight | 3 Kgs |
| Condition | Used (Tested & Verified) |

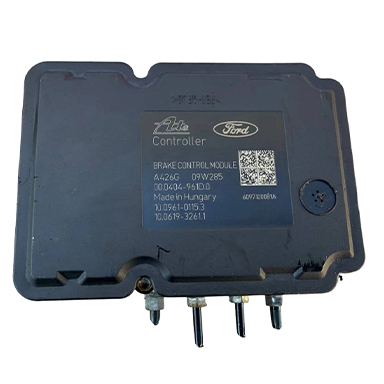

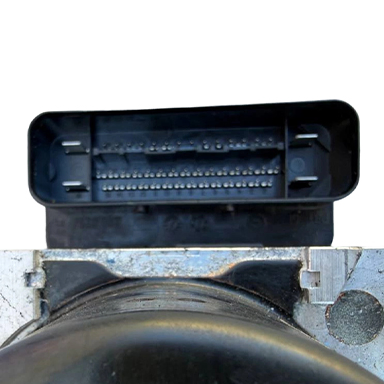

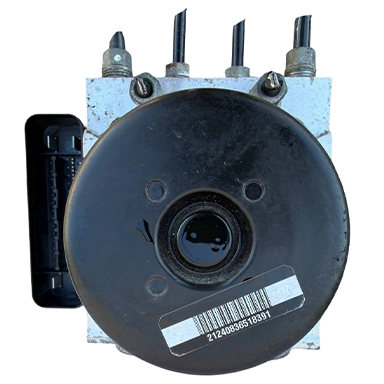

Mazda 3 BL OEM ATE ABS Pump & Control Module – 8V61-2C405-AG
100% Fitment Guarantee for Mazda 3
Unsure if this fits your vehicle? Our experts will manually verify the compatibility of SKU: R2KVZ0 for your specific Mazda model before dispatch.
Free Express Shipping & Free In-Store Pickup
Free Express Shipping Australia-Wide (1-2 business days) or free in-store pickup from our Yennora, NSW warehouse.
View Warehouse LocationTested Mazda 3 BL ABS Pump & Control Module – 8V61-2C405-AG
Replace a diagnosed faulty ABS hydraulic unit with this OEM ATE Mazda 3 BL ABS Pump & Control Module (Part No: 8V61-2C405-AG) . This used ABS assembly has been inspected and tested at our Yennora, NSW facility before sale. It is suitable for selected Mazda 3 BL applications using the matching 8V61-2C405-AG ABS unit.
ABS units can vary between vehicles within the same model and production period. Compatibility should therefore be confirmed using the part number on your original ABS unit and, where required, the vehicle VIN before ordering.
Possible Symptoms of an ABS System Fault
A faulty ABS pump or control module may be associated with ABS/DSC warning lights or diagnostic trouble codes. These symptoms can also have other causes, so proper diagnosis is recommended before replacing the ABS assembly.
-
C0020 ABS Pump Motor / Relay Fault C0020 and related pump-motor circuit faults have been associated with this ABS unit family. The pump circuit, electrical supply and related components should be correctly diagnosed before replacement.
-
U0121 Lost Communication with ABS Control Module U0121 indicates a communication fault involving the ABS/DSC control module. A failed ABS module can cause this code, but power supply, ground, connectors or CAN-bus wiring should also be checked before replacing the unit.
-
ABS / DSC Warning Lights Persistent or intermittent ABS, DSC or traction-control warning lights may occur when the ABS system detects an electrical, hydraulic or communication fault. Diagnostic scanning should be used to identify the underlying cause.
Fitment & Technical FAQ for Mazda 3 (2009 - 2013) Braking System Part #8V61-2C405-AG
U0121 indicates lost communication with the ABS/DSC control module. A failed ABS module can cause this fault, but U0121 may also be caused by power supply, ground, connector or CAN-bus wiring faults. The vehicle should be correctly diagnosed before replacing the module. If the original 8V61-2C405-AG unit has been confirmed faulty, replacing it with a compatible tested unit may resolve the communication fault.
The ABS HU/CM must be correctly configured after replacement. Mazda service information describes an automatic configuration process on applicable Mazda 3 models, where the replacement module reads vehicle configuration data over the CAN network after the ignition is switched on or the engine is started. Diagnostic fault codes should then be checked and cleared. Additional sensor calibration or diagnostic procedures may be required depending on the vehicle specification and stored DTCs. Professional installation and brake-system bleeding are recommended.
Mazda utilized subtle variation suffixes for different model configurations across the BL generation. To guarantee a flawless physical match and configuration line-up, ensure your original part features the 8V61-2C405-AG stamp, or contact our team with your VIN to check compatibility before dispatch.
