Vehicle Specification & Fitment
| OEM Part Number | 3M51-2M110-JA |
|---|---|
| ABS ECU Controller P/N | 10.0970-0124.3 |
| Manufacturer Reference | 10.0207-0071.4 |
| Manufacturer Reference | 00402662E3 |
| Manufacturer Reference | 7G36D120E9 |
| System Designation | ABS |
| Make | Mazda |
| Model | 3 |
| Series | Bk |
| Year Range | 2004 - 2009 |
| Compatible Years | 2004, 2005, 2006, 2007, 2008, 2009 |
| Weight | 3 Kgs |
| Condition | Used (Tested & Verified) |

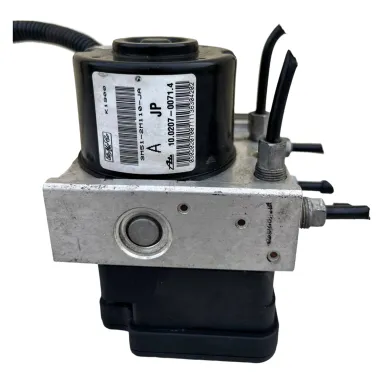

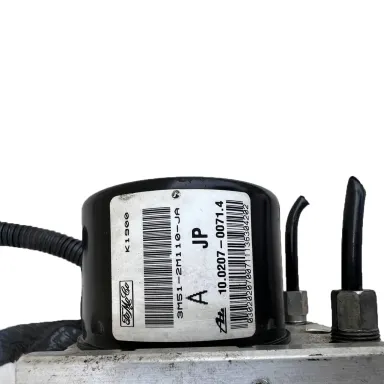

Genuine Mazda 3 BK ABS Pump & Module - Part No. 3M51-2M110-JA (2004-2009)
Donor VIN: JM0BK103100138977100% Fitment Guarantee for Mazda 3
Unsure if this fits your vehicle? Our experts will manually verify the compatibility of SKU: 3OOVGWKZ for your specific Mazda model before dispatch.
Free Express Shipping & Free In-Store Pickup
Free Express Shipping Australia-Wide (1-2 business days) or free in-store pickup from our Yennora, NSW warehouse.
View Warehouse LocationVehicle Compatibility List
Verified FitmentReliable Braking System Solution for Mazda 3 BK (2004–2009)
Replace a diagnosed faulty ABS assembly with this OEM ATE Mazda 3 BK ABS Pump & Control Module (Part No: 3M51-2M110-JA) . This used ATE MK70 assembly carries matching references including 10.0970-0124.3 and 10.0207-0071.4. Each unit is inspected and function-tested before sale.
ABS warning symptoms may also be caused by wheel-speed sensors, wiring, power supply, connectors or communication faults. Correct diagnostic testing is recommended before replacing the assembly.
Possible ABS System Fault Symptoms
- ABS Warning Light A persistent ABS warning light indicates a stored anti-lock braking system fault. Diagnostic scanning should be used to identify the underlying cause before replacing the ABS assembly.
- ABS Pump or Motor Fault Pump-related faults may be caused by the hydraulic pump, power supply, wiring, grounds or ABS control module. The complete circuit should be checked before replacement.
- No Communication with the ABS Module Loss of diagnostic communication may occur with an internal control-module fault, but module power, ground, connectors and communication wiring should also be checked.
Fitment & Technical FAQ for Mazda 3 (2004 - 2009) Braking System Part #3M51-2M110-JA
Yes. The 3M51-2M110-JA is the primary replacement for the infamous C1288 Pressure Transducer failure. This is an internal hardware fault within the hydraulic block that cannot be fixed with software. Replacing the module is the only permanent solution.
This is known as the "Trifecta" of lights on the Mazda 3 BK. It signals a critical failure in the ABS pump/module communication. Installing our tested 3M51-2M110-JA unit restores the communication loop and clears all three warning lights.
Mazda workshop information specifies ABS HU/CM configuration after replacement on applicable Mazda 3 BK vehicles. Mazda-compatible diagnostic equipment may be required to perform the ABS Programmable Module Installation procedure. After installation, stored DTCs should be checked and cleared, and the hydraulic brake system must be correctly bled. Professional installation is recommended.
