Vehicle Specification & Fitment
| OEM Part Number | LFAE 18 9E1H |
|---|---|
| Make | Mazda |
| Model | 3 |
| Series | Bl |
| Year Range | 2009 - 2013 |
| Compatible Years | 2009, 2010, 2011, 2012, 2013 |
| Weight | 3 Kgs |
| Condition | Used (Tested & Verified) |

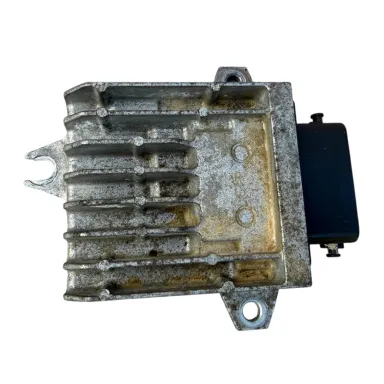

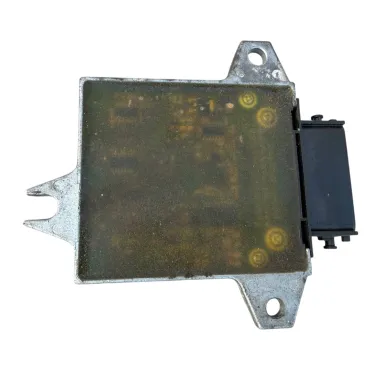

Genuine Mazda 3 BL 2.0L Transmission Control Module TCM — Part No. LFAE 18 9E1H (2009–2013)
100% Fitment Guarantee for Mazda 3
Unsure if this fits your vehicle? Our experts will manually verify the compatibility of SKU: 1TUTVU for your specific Mazda model before dispatch.
Mastercard
Visa
Free Express Shipping & Free In-Store Pickup
Free Express Shipping Australia-Wide (1-2 business days) or free in-store pickup from our Yennora, NSW warehouse.
View Warehouse LocationVehicle Compatibility List
Verified FitmentTested & Verified Transmission Control Unit | SKU: 1TUTVU | 12-Month Replacement Warranty
Restore absolute transmission shifting and clear critical system faults with this Genuine Mazda 3 BL 2.0L Transmission Control Module TCM (Part No: LFAE 18 9E1H). Sourced from low-mileage donor vehicles and meticulously bench-tested at our Yennora, NSW warehouse, this unit is the definitive replacement for failing 2009–2013 Mazda 3 BL series automatic transmission control systems. This module serves as your primary Transmission Control Unit (TCU/TCM), essential for gear selection, torque converter lockup, and shifting smoothness on Australian roads.
Fault Symptoms (Is Your Mazda 3 Transmission Control Module Failing?)
The Mazda 3 BL 2.0L platform frequently exhibits these exact diagnostic symptoms when internal thermal breakdown or circuit board failure occurs within the Mitsubishi Electric G1T01375HF module:
-
Illuminated AT Light, Check Engine Light & U0101 Loss of Communication Complete loss of CAN-bus data communication between the powertrain control module and TCM caused by engine heat degradation on circuit traces.
-
Hard 3rd Gear Limp-Home Mode (Loud Clunk When Engaging Drive/Reverse) Automatic gearbox locks into a high-gear fail-safe state, causing severe vehicle thumping when selecting Park, Reverse, or Drive.
-
False P0753, P0758 or P0763 Shift Solenoid Circuit Trouble Codes Diagnostic trouble codes indicating valve body solenoid electrical failure triggered by internal TCM ground trace breakdown rather than mechanical gearbox fault.
Fitment & Technical FAQ for Mazda 3 (2009 - 2013) Transmission & Drivetrain Part #LFAE 18 9E1H
On 2009–2013 Mazda 3 BL 2.0L models, replacing a failed transmission module with an exact part number match (LFAE 18 9E1H) is direct plug-and-play and does not require security immobiliser linking. Once installed, simply clear any stored historical trouble codes with an OBD2 scan tool. Auto electricians and mechanics frequently recommend mounting the replacement unit away from the hot transmission casing using a relocation bracket to prevent future thermal circuit degradation.
Yes, matching primary part number LFAE 18 9E1H (and Mitsubishi Electric stamping G1T01375HF) is critical for 2009–2013 Mazda 3 BL 2.0L models. Mazda deployed several distinct TCM variants across the BL generation depending on engine displacement (2.0L LF vs 2.5L L5), transmission type (5-speed FS5A-EL vs 6-speed SkyActiv), and factory trim levels. Installing a different module number causes shift solenoid circuit mismatches, gear ratio flares, and persistent transmission fault lights.
The most common symptoms include the AT light and Check Engine light coming on together, a severe hydraulic "thump" or clunk when shifting into Drive or Reverse, and the transmission getting stuck in 3rd gear fail-safe mode. Diagnostic scan tools will typically record fault code U0101 (Lost Communication with Transmission Control Module / TCM) or false solenoid circuit error codes like P0753, P0758, or P0763.
