Vehicle Specification & Fitment
| OEM Part Number | L34N 18 9E1A |
|---|---|
| Make | Mazda |
| Model | 3 |
| Series | Bk |
| Year Range | 2007 - 2009 |
| Compatible Years | 2007, 2008, 2009 |
| Weight | 0.5 Kgs |
| Condition | Used (Tested & Verified) |

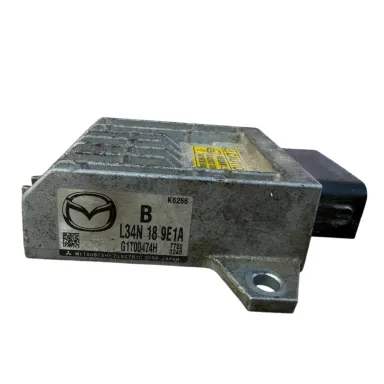

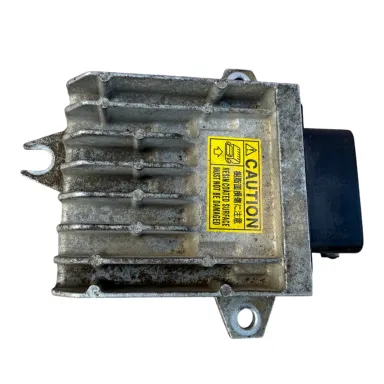

Genuine Mazda 3 BK Transmission Control Module TCM — Part No. L34N 18 9E1A (2007–2009)
100% Fitment Guarantee for Mazda 3
Unsure if this fits your vehicle? Our experts will manually verify the compatibility of SKU: ZCZRQD for your specific Mazda model before dispatch.
Mastercard
Visa
Free Express Shipping & Free In-Store Pickup
Free Express Shipping Australia-Wide (1-2 business days) or free in-store pickup from our Yennora, NSW warehouse.
View Warehouse LocationVehicle Compatibility List
Verified FitmentTested & Verified Transmission Control Unit | SKU: ZCZRQD | 12-Month Replacement Warranty
Restore absolute transmission shifting and clear critical system faults with this Genuine Mazda 3 BK Transmission Control Module TCM (Part No: L34N 18 9E1A). Sourced from low-mileage donor vehicles and meticulously bench-tested at our Yennora, NSW warehouse, this unit is the definitive replacement for failing 2007–2009 Mazda 3 BK series automatic transmission control systems. This module serves as your primary Transmission Control Unit (TCU/TCM), essential for gear selection, torque converter lockup, and shifting smoothness on Australian roads.
Fault Symptoms (Is Your Mazda 3 Transmission Control Module Failing?)
The Mazda 3 BK platform frequently exhibits these exact diagnostic symptoms when internal thermal breakdown or circuit board failure occurs within the Mitsubishi Electric G1T00474H module:
-
Illuminated AT Light, Check Engine Light & U0101 Loss of Communication Complete loss of CAN-bus data communication between the powertrain control module and TCM caused by engine heat degradation on circuit traces.
-
Hard 3rd Gear Limp-Home Mode (Loud Clunk When Engaging Drive/Reverse) Automatic gearbox locks into a high-gear fail-safe state, causing severe vehicle thumping when selecting Park, Reverse, or Drive.
-
False P0753, P0758 or P0763 Shift Solenoid Circuit Trouble Codes Diagnostic trouble codes indicating valve body solenoid electrical failure triggered by internal TCM ground trace breakdown rather than mechanical gearbox fault.
Fitment & Technical FAQ for Mazda 3 (2007 - 2009) Transmission & Drivetrain Part #L34N 18 9E1A
On 2007–2009 Mazda 3 BK models, replacing a failed transmission module with an exact part number match (L34N 18 9E1A) is direct plug-and-play and does not require security immobiliser linking. Once installed, simply clear any stored historical trouble codes using an OBD2 scan tool. Mechanics and auto electricians frequently recommend mounting the replacement unit away from the hot transmission housing using a relocation bracket to prevent heat-related circuit degradation.
Yes, matching primary part number L34N 18 9E1A (and Mitsubishi Electric stamping G1T00474H) is essential for 2007–2009 Mazda 3 BK models. Mazda used multiple distinct TCM revisions across the BK series depending on engine size (2.0L vs 2.3L) and transmission solenoid pinouts. Installing a non-matching module number causes shift solenoid circuit errors, gear flare, and persistent transmission fault lights.
The most common symptoms include the AT warning light and Check Engine light illuminating simultaneously, a loud mechanical "thump" or shock when selecting Drive or Reverse, and the vehicle locking into 3rd gear limp-home mode. Diagnostic scans will usually report fault code U0101 (Lost Communication with Transmission Control Module) or false solenoid fault codes such as P0753, P0758, or P0763.
