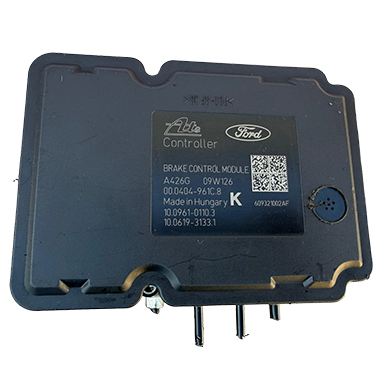

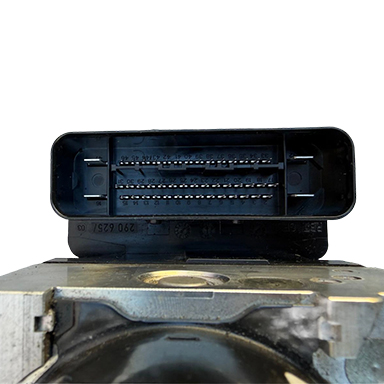

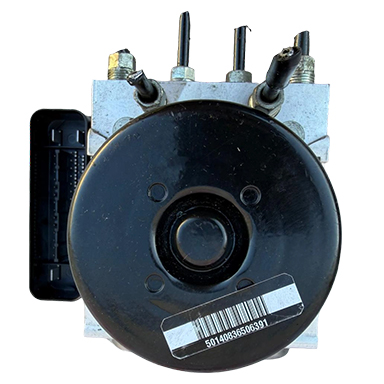

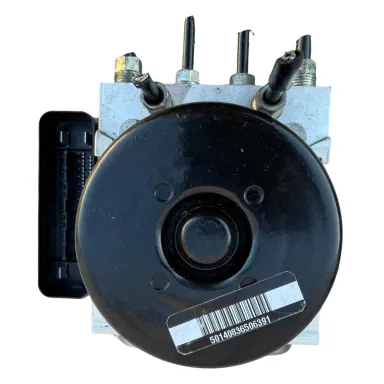

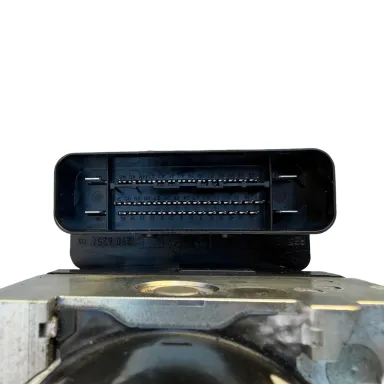

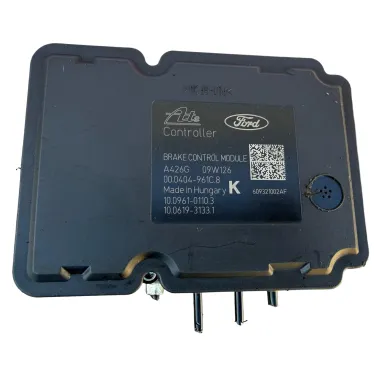

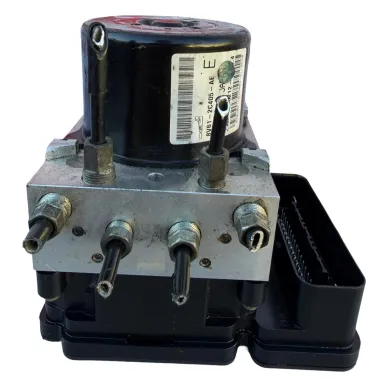

Mazda 3 BL ABS Pump Module Part No. 8V61-2C405-AE (2009-2013)

Yes. Installing SKU: FIX4QJ requires electronic coding and software configuration. While the physical hydraulic block can be unbolted and swapped into place, the electronic control module portion must be programmed to your vehicle's specific VIN. This process ensures the anti-lock brake unit can communicate correctly with the main engine PCM/ECU and other critical safety networks like Dynamic Stability Control (DSC). You will typically need an OBD2 diagnostic software suite like FORScan or Mazda IDS to perform the module initialization, parameter resets, and sensor calibrations (specifically the steering angle sensor and brake pressure sensor configurations) to completely clear any lingering "U-codes" or communication faults from the dashboard.

A failing 8V61-2C405-AE unit on the Mazda 3 BL series (2009–2013) usually triggers the classic dashboard "trifecta" warning lights (ABS, Traction Control, and Handbrake indicators remaining illuminated simultaneously). When hooked up to an automotive scanner, the most frequent Diagnostic Trouble Codes (DTCs) mapped to this hardware failure include: * C0020 / C2116: ABS Pump Motor Supply or Return Pump circuit malfunctions, indicating the internal motor brushes have worn down or failed under heat. * U0121: Lost Communication with ABS Control Module, signaling an internal power loss or board-level failure within the modulator assembly. * C1276 / 01276: ABS Hydraulic Pump (V64) internal circuit malfunction. 5DF0 / 5DF1: Hydraulic unit pump motor or plug connector faults, indicating the internal motor has likely seized or failed electrically.

Generally, yes. For the Mazda 3 BL series (2009–2013), engineering part numbers 8V61-2C405-AE, 8V61-2C405-AF, and 8V61-2C405-AG are all built on the exact same ATE MK61 stability control framework and are interchangeable across common engine models (including 1.6L, 2.0L, and 2.3L variants). The letter at the end of the part stamp simply represents a minor factory production revision sequence or a newer baseline firmware version from the manufacturer. However, when ordering SKU: FIX4QJ, always confirm that your original failing unit is an ATE MK61 type and not the older ATE MK60 generation utilized in the earlier Mazda 3 BK series (2003–2009) to ensure that the main wiring harness plug pins and hydraulic brake line threads line up perfectly.
