Vehicle Specification & Fitment
| OEM Part Number | 8V61-2C405-AF |
|---|---|
| Make | Mazda |
| Model | 3 |
| Series | Bl |
| Year Range | 2009 - 2013 |
| Compatible Years | 2009, 2010, 2011, 2012, 2013 |
| Weight | 3 Kgs |
| Condition | Used (Tested & Verified) |

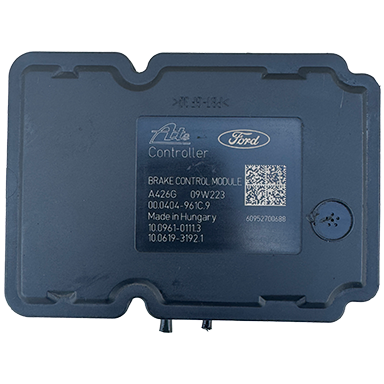

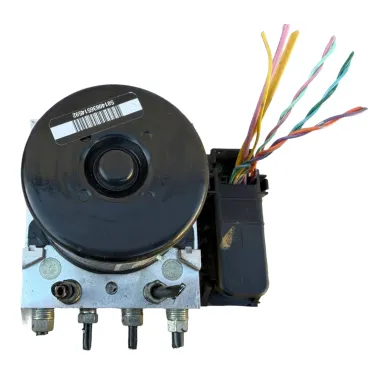

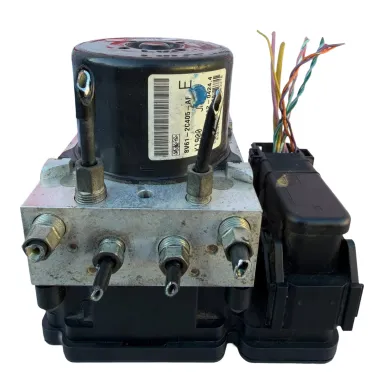

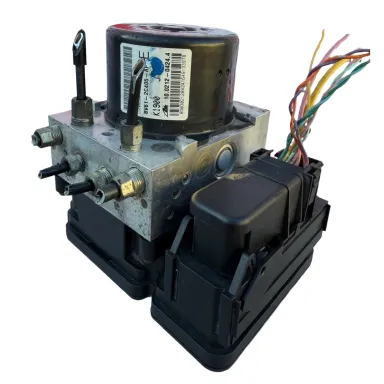

Genuine Mazda 3 (BL) ABS Module & Pump - Part No. 8V61-2C405-AF (2009 - 2013)
100% Fitment Guarantee for Mazda 3
Unsure if this fits your vehicle? Our experts will manually verify the compatibility of SKU: WFWL5XTY for your specific Mazda model before dispatch.
Mastercard
Visa
Free Express Shipping & Free In-Store Pickup
Free Express Shipping Australia-Wide (1-2 business days) or free in-store pickup from our Yennora, NSW warehouse.
View Warehouse LocationVehicle Compatibility List
Verified FitmentPremium OEM Braking Control Solution for Mazda 3 BL (2009–2013)
Restore your Mazda 3 BL’s safety systems with this Genuine OEM ABS Module and Pump (Part No: 8V61-2C405-AF). This specific ATE-style unit is critical for maintaining Traction Control and Anti-lock Braking functionality. Every unit in our Yennora warehouse is subjected to a rigorous "Hot-Test" to ensure the internal circuit board doesn't fail under engine bay heat—a common issue with the BL series. This part is a direct-fit replacement, ensuring your vehicle remains compliant with Australian safety standards.
Fault Symptoms (Is Your BL ABS Failing?)
-
Fault Code C0020 ABS Pump Motor Control circuit failure—statistically the #1 electronic fault for the BL series.
-
Dashboard Warning Lights ABS, Traction Control (TCS), and Brake lights illuminated simultaneously on your instrument cluster.
-
Loss of Hill Launch Assist If your BL Mazda 3 rolls back on hills, the failing ABS module is often the primary culprit.
-
Scan Tool Communication Error Total failure to connect to the ABS/DSC network via OBDII diagnostic tools.
Fitment & Technical FAQ for Mazda 3 (2009 - 2013) Braking System Part #8V61-2C405-AF
This is known as the "Trifecta" of lights on the Mazda 3 BL. It is almost always caused by Fault Code C0020 (ABS Pump Motor Control Circuit). This occurs when the internal motor brushes seize due to engine bay heat. Our units are "Hot-Tested" to ensure they perform perfectly even in extreme Australian summer temperatures.
Yes. Because the Mazda 3 BL shares the Ford C1 platform, part number 8V61-2C405-AF is identical to the unit used in the Ford Focus LV/LW. As long as the part number matches exactly, it is a direct fit. This makes it a highly versatile and reliable replacement option.
We strongly recommend an "Electronic Purge" or "Service Bleed" using a diagnostic tool. The ATE MK61 system in the BL series can trap air inside the secondary valve circuits that a traditional manual bleed cannot reach. A proper electronic bleed ensures a rock-solid brake pedal and full ABS functionality.
