Vehicle Specification & Fitment
| OEM Part Number | 4670A561 |
|---|---|
| ABS ECU Controller P/N | 06.2109-5811.3 |
| Manufacturer Reference | 06.2102-1784.4 |
| Manufacturer Reference | 06.2613-3660.1 |
| Manufacturer Reference | 28.5611-7500.3 |
| Manufacturer Reference | 41140600266 |
| System Designation | ESP |
| System Designation | EC03 C08 |
| Make | Mitsubishi |
| Model | Lancer |
| Series | Cj |
| Year Range | 2007 - 2011 |
| Compatible Years | 2007, 2008, 2009, 2010, 2011 |
| Weight | 3 Kgs |
| Condition | Used (Tested & Verified) |

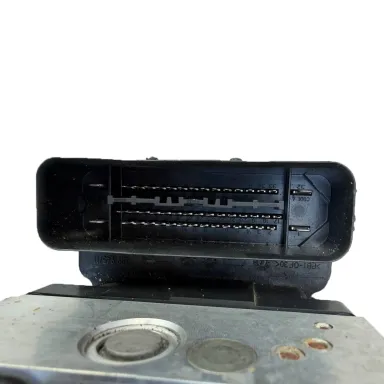

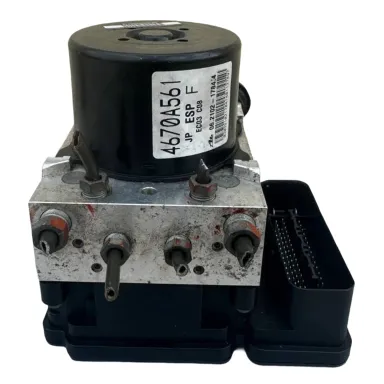

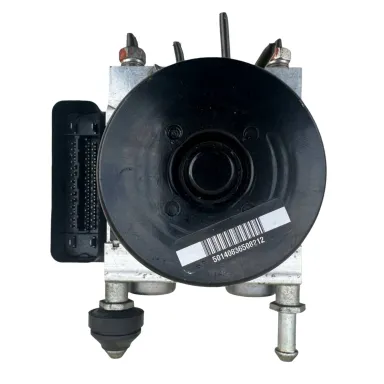

Genuine Mitsubishi Lancer ABS Pump & ASC Control Module - 4670A561 (2007 - 2011)
100% Fitment Guarantee for Mitsubishi Lancer
Unsure if this fits your vehicle? Our experts will manually verify the compatibility of SKU: 3H2SFMI1 for your specific Mitsubishi model before dispatch.
Free Express Shipping & Free In-Store Pickup
Free Express Shipping Australia-Wide (1-2 business days) or free in-store pickup from our Yennora, NSW warehouse.
View Warehouse LocationVehicle Compatibility List
Verified FitmentPremium Replacement ABS Modulator for Lancer Sportback & Sedan
Replace a diagnosed faulty ABS/ASC assembly with this Genuine Mitsubishi / ATE ABS Pump & Control Module (Part No: 4670A561) . This used ATE MK61 assembly carries matching references including 06.2109-5811.3, 06.2102-1784.4 and 06.2613-3660.1. Each unit is inspected and function-tested before sale.
ABS and ASC warning symptoms may also be caused by power supply, wiring, sensors, CAN communication or other braking-system faults. Correct diagnostic testing is recommended before replacing the assembly.
Possible ABS / ASC System Fault Symptoms
- C2116 – ABS Pump Motor Supply Voltage Fault C2116 relates to abnormal pump-motor supply voltage. The battery, charging system, power supply, wiring, CAN network and ABS/ASC control unit should be checked before replacement.
- C2200 – ASC Control Unit Malfunction C2200 indicates a detected ASC-ECU malfunction. CAN communication and related electrical connections should be checked before the hydraulic/control unit is replaced.
- ABS / ASC Warning Messages Persistent ABS or ASC warnings indicate a stored system fault. Diagnostic scanning should be used to identify the underlying cause.
- No Communication with ABS / ASC Module Loss of communication may occur with an internal module fault, but power, ground, connectors and CAN wiring should also be checked.
Fitment & Technical FAQ for Mitsubishi Lancer (2007 - 2011) Braking System Part #4670A561
C2116 indicates abnormal pump-motor supply voltage. Possible causes include the battery or charging system, fusible link, wiring/connectors, CAN communication or an internal ABS/ASC control-unit fault. Correct diagnosis should be completed before replacing the assembly.
In the Lancer CJ series, many part numbers are interchangeable (like 4670A561 and 4670A298) as long as the vehicle has the same engine (2.0L vs 2.4L) and 2WD/AWD configuration. To be 100% safe for the Australian market, we recommend matching your part number exactly or verifying your VIN with us before purchase.
A matching replacement unit may not require conventional ECU flash programming, but Mitsubishi service information requires calibration after ASC-ECU/hydraulic-unit replacement. This includes steering-angle, G/yaw-rate and brake-fluid-pressure sensor calibration using suitable diagnostic equipment. The hydraulic brake system must also be correctly bled after installation.
