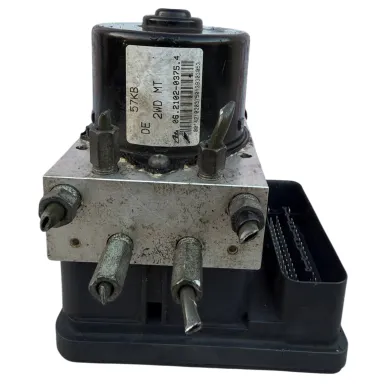

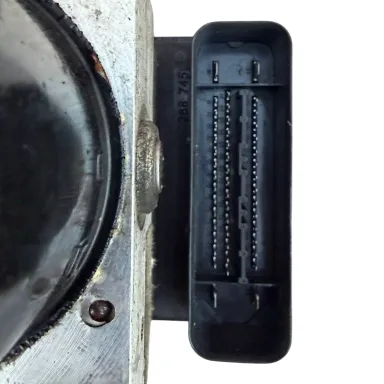

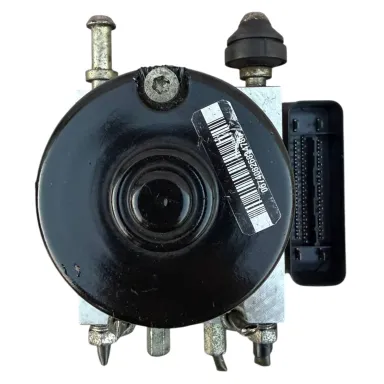

Suzuki Swift Sport EZ ZC31S ABS Pump Modulator Unit Part No. 57KB (2005-2011)

No, the 57KB ABS modulator on the 2005–2011 Suzuki Swift Sport EZ/ZC31S platform is predominantly plug-and-play. It does not require complex online immobiliser synchronization or VIN-locked coding. However, once installed, you must perform a pressurized hydraulic brake bleeding procedure (flushing both the primary master cylinder circuits and the internal ABS modulator valves using an OBD2 scan tool capable of running Suzuki ABS automated bleed cycles) to clear air pockets. After the hydraulic system is purged, use a scan tool (such as Suzuki SDT, Autel, or Launch) to clear historical DTCs and calibrate the zero-point steering angle sensor if your vehicle is equipped with ESP.

The single most prevalent failure on this generation of Suzuki ABS units is Diagnostic Trouble Code C1028: Master Cylinder Brake Pressure Sensor Circuit Malfunction. The internal pressure transducer embedded inside the aluminum hydraulic block suffers electrical trace failure or micro-circuit degradation from prolonged heat exposure, locking the ABS light permanently on. Other common codes for SKU: SZ57KB include C1061: ABS Pump Motor / Fail-Safe Motor Relay Circuit Fault (worn motor brushes or dry internal solder joints) and U0121: Lost Communication with ABS / ESP Control Module.

No. While the physical mounting bracket and harness plug may appear identical, the Swift Sport (ZC31S) features factory 4-wheel disc brakes and a sport-tuned suspension geometry, whereas base model 1.5L and 1.3L EZ Swifts predominantly utilize rear drum brakes. Installing a base-model pump onto a Swift Sport results in dangerous front-to-rear hydraulic brake bias mismatch, erratic ABS trigger thresholds under track or wet road conditions, and persistent communication error codes on ESP-equipped Sport variants. Always ensure your replacement matches the 57KB hardware identifier.
