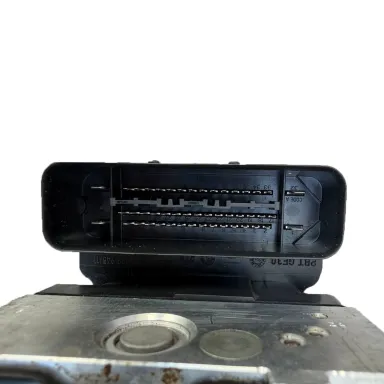

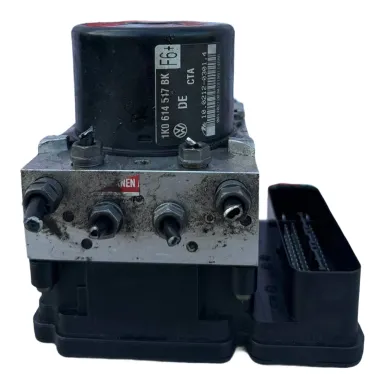

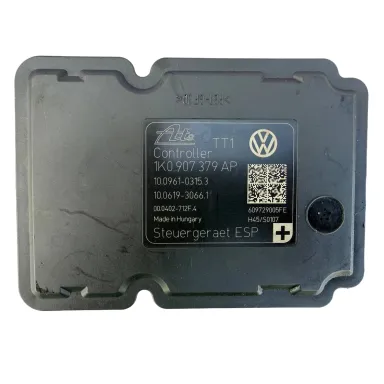

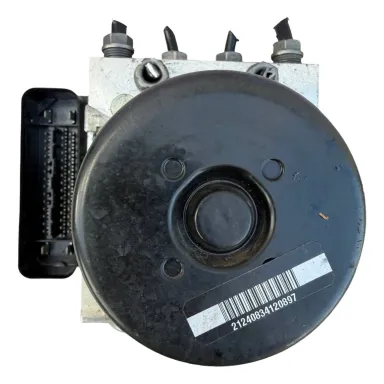

Genuine VW Golf Mk5 ABS Pump & ESP Control Module – 1K0 614 517 BK / 1K0 907 379 AP (2008–2009)

Possible Symptoms of an ABS / ESP System Fault

Faults within the ABS pump or ESP control module may produce warning lights, diagnostic trouble codes or abnormal hydraulic/pump operation. These symptoms can also have external electrical or hydraulic causes, so diagnostic testing is recommended before replacing the assembly.

• 16352 – Control Module Electrical Error Fault code 16352 may indicate an internal ABS/ESP control-module electrical fault. The module, power supply, coding and related system conditions should be correctly diagnosed before replacement.
• 01276 – ABS Hydraulic Pump (V64) Code 01276 relates to the ABS hydraulic pump circuit. Possible causes include the pump itself, wiring, connectors, fuses, grounds or the ABS control module, so the complete circuit should be checked before the unit is replaced.
• ABS / ESP Warning Lights Persistent ABS or ESP warning lights indicate a stored braking-system fault. Diagnostic scanning is required to determine whether the fault is within this assembly or another component of the ABS/ESP system.
• Abnormal Pump or Hydraulic Operation Continuous pump operation or abnormal brake-pressure behaviour accompanied by relevant ABS fault codes may indicate a pump, control-module or hydraulic-block fault and should be professionally diagnosed.
