Vehicle Specification & Fitment
| OEM Part Number | 63J0 |
|---|---|
| Make | Suzuki |
| Model | Swift |
| Series | Ez |
| Year Range | 2005 - 2011 |
| Compatible Years | 2005, 2006, 2007, 2008, 2009, 2010, 2011 |
| Weight | 3 Kgs |
| Condition | Used (Tested & Verified) |

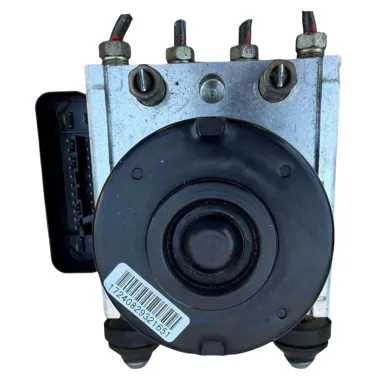

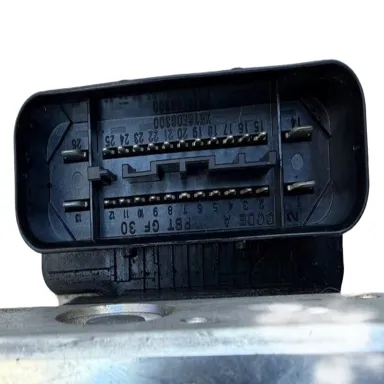

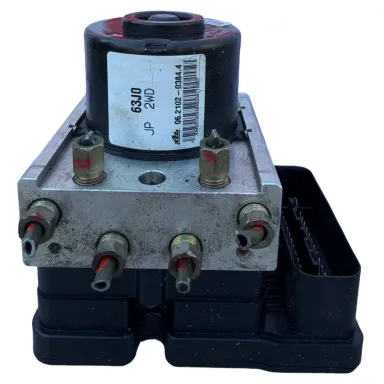

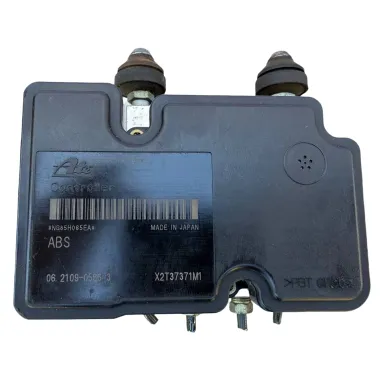

Genuine Suzuki Swift EZ ABS Pump Module — Part No. 63J0 (2005–2011)
100% Fitment Guarantee for Suzuki Swift
Unsure if this fits your vehicle? Our experts will manually verify the compatibility of SKU: S4AYYN for your specific Suzuki model before dispatch.
Mastercard
Visa
Free Express Shipping & Free In-Store Pickup
Free Express Shipping Australia-Wide (1-2 business days) or free in-store pickup from our Yennora, NSW warehouse.
View Warehouse LocationVehicle Compatibility List
Verified FitmentTested & Verified Braking Modulator | SKU: S4AYYN | 12-Month Replacement Warranty
Restore absolute braking control and clear critical system faults with this Genuine Suzuki Swift EZ ABS Pump Modulator (Part No: 63J0). Sourced from low-mileage donor vehicles and meticulously bench-tested at our Yennora, NSW warehouse, this unit is the definitive replacement for failing 2005–2011 EZ series braking systems. This module serves as your primary Electronic Brake Control assembly, essential for anti-lock performance on Australian roads.
Fault Symptoms (Is Your Suzuki Swift ABS Module Failing?)
The Suzuki Swift EZ platform frequently exhibits these exact diagnostic symptoms when the 63J0 internal modules encounter circuitry or hydraulic breakdown:
-
C1028 Master Cylinder Pressure Sensor Circuit Malfunction The most common structural failure across this generation, causing the main ABS warning light to switch on permanently due to internal transducer element degradation.
-
U0121 CAN-Bus Communication Lost With Control Block A complete electronic system drop where the primary ECU fails to ping data logs from the ABS computer module assembly, breaking diagnostic connectivity.
-
Intermittent Speedometer Fluctuations / Hard Lock warning Lights Micro-soldering circuit cracks that drop speed sensor translation protocols, resulting in erratic dashboard cluster operation under changing cabin temperatures.
Fitment & Technical FAQ for Suzuki Swift (2005 - 2011) Braking System Part #63J0
Diagnostic fault code C1028 points directly to a failure of the brake fluid pressure sensor built inside the ABS hydraulic block assembly. Because it is an integrated internal component fault rather than an external connection issue, cleaning lines or flushing fluid will not clear the hard code, requiring a replacement modular unit.
Yes. For the 2004–2011 Suzuki Swift RS production run, matching the primary factory stamp sequence 63J0 ensures absolute mechanical alignment and matching terminal pinouts. It generally runs plug-and-play without requiring custom dealership computer re-flashing, although you will need to clear legacy stored error codes.
Every module assembly is cleanly unbolted by automotive professionals from selected donor vehicles. Before inventory catalog entry at our Yennora, NSW hub, we run scanner tracking directly into the electronic module to verify error-free sensor tracking and activate the internal hydraulic motor to ensure peak mechanical response.
